B Meters WDE-K50 Woltmann

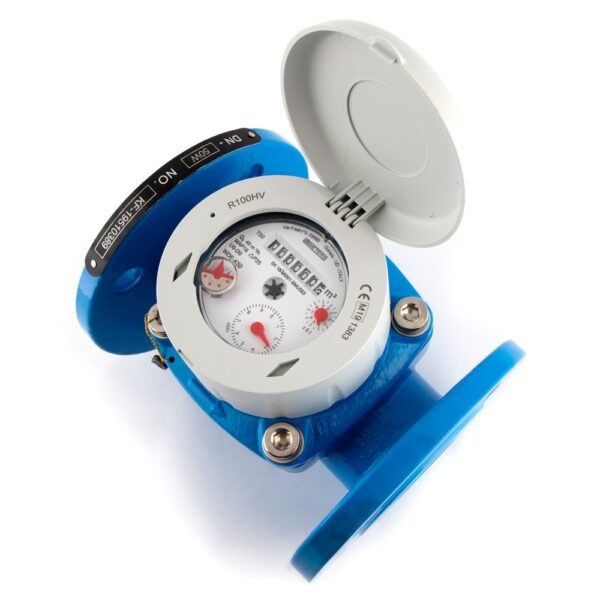

WDE-K50 – BMeters Woltmann Potable Cold Water Meter

The WDE-K50 is a horizontal Woltmann with a removable insert.  It uses a sealed counter mechanism with a magnetic transmission, and features a high measuring range (R250).

Inductive pre-equipment for the installation of data communication modules come standard; M-Bus Wired and Wireless MBUS, non-magnetic pulse output and LoRa.

WDE-K50 key features (basic version):

• R100 VH↑→
• Cold water version 0.1°C – 50°C
• Magnetic transmission
• Direct reading on 7 numeric rolls
• With removable insert
• Anti-magnetic fraud protection
• 360° rotating dry dial
• Includes lid

R100-H/V

Available for cold water 0°C – 50°C

Magnetic Transmission

Direct reading on 7 numeric rolls

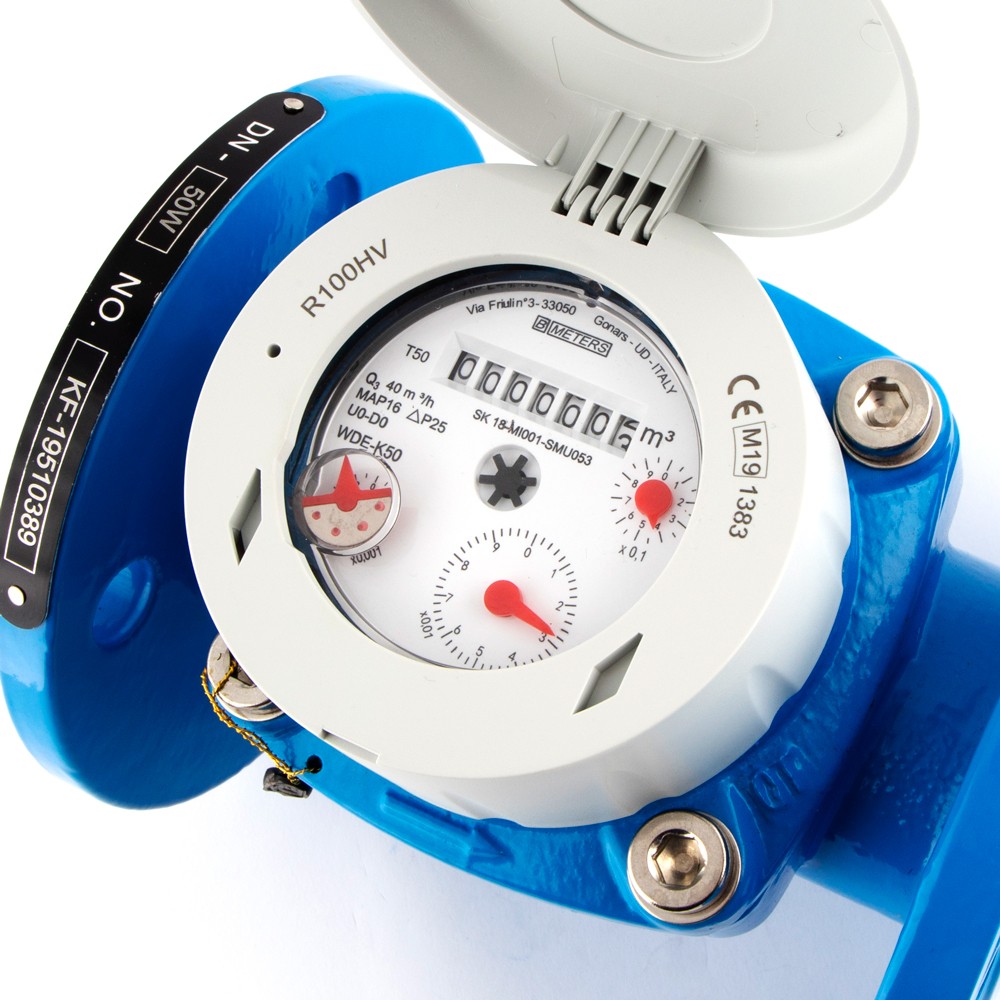

360° rotating drydial

Dial lid as standard

BMeters Communication Modules

This range of B Meters communication modules have been designed for their WDE-K50 woltmann meters with inductive interface.

BMeters module key features:

• Commercial & industrial  applications
• IP68 protection allows the use of the module also for meters installed in difficult environments (maximum 24 hours of continuous submersion at 1 m depth).
• NFC interface allows configuration and commissioning of the device with the use of a simple smartphone app.
• Consumption analysis with reverse flow compensation.
• Fraud control
• Suitable for B Meters WDE-K50 meters

PULSED IWM-PL4

• Allows collection of data by third-party systems with a universal interface
• Compatible with pre-equipped Woltmann meters
• Dedicated dosing function available for industrial applications

WIRED MBUS IWM-MB4

• Allows collection of data using standard Wired M-BUS protocol
• Compatible with all the pre-equipped multiple jet meters

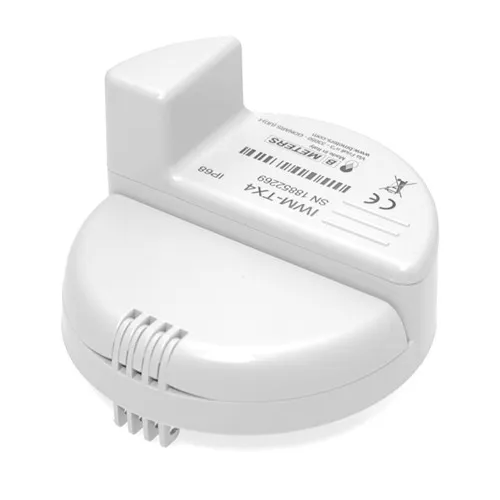

Wireless MBUS IWM-TX4

• Allows collection of data without any constraints of access to the site in walk-by mode, or AMR, in respect of the WMBUS standard and complying with the OMS specification (up to 500m in optimal signal transmission conditions)

LoRaWAN IWM-LR4

• Allows collection of data without any constraints of access to the site thanks to the Long Range LoRa radio technology (up to 5km in optimal signal transmission conditions)
