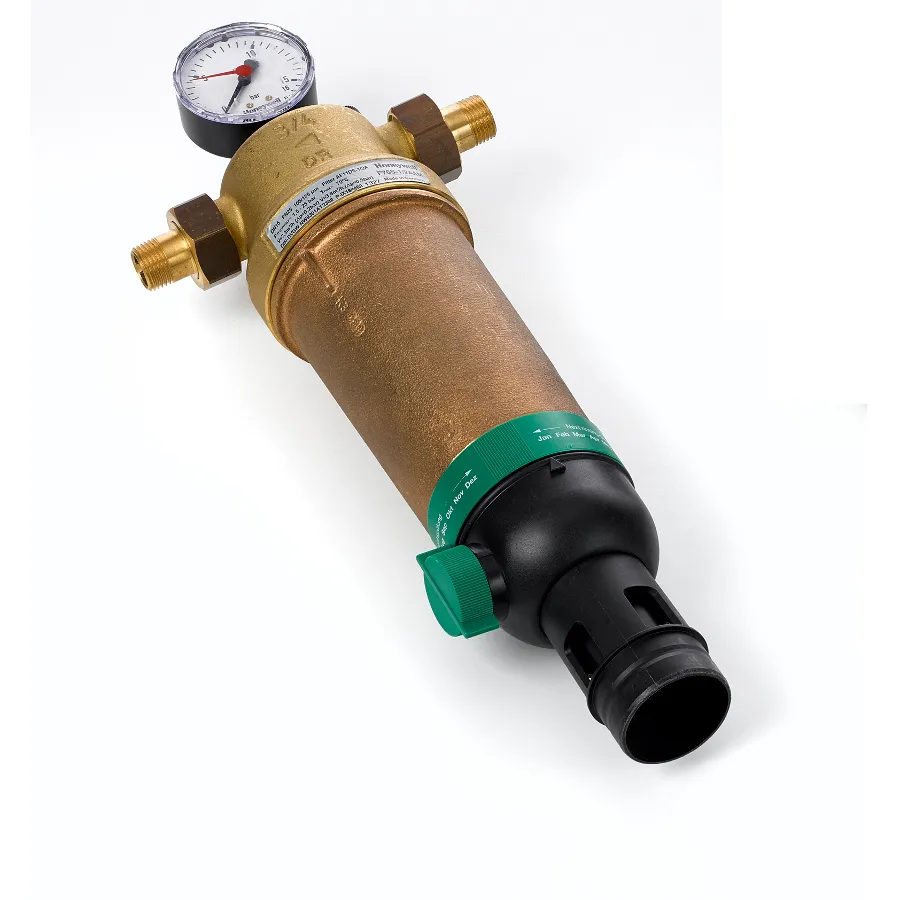

Braukmann Resideo F76S Backwash Filters

Braukmann F76S Backwash Filters

F76S (lead free) reverse rinsing filters ensure a continuous supply of filtered water. The fine filter prevents the ingress of foreign bodies, for example rust particles, strands of hemp and grains of sand and thus reduces the probability of corrosion.  The appliances correspond to the requirements of current DIN/DVGW specifications.

How it Works

The filter is divided into two parts, the lower larger section for normal water filtration, and the smaller upper section which is only engaged during reverse rinsing to cleanse the filter.  During normal operation water flows around the outside of the upper section down into lower where the filter is held, then flows through the filter into a central chamber where filtered water flows up and exits.

During cleaning the system changes to reverse rinsing (this function can be engaged manually, or fully automated).  When activated water pressure pushes the whole filter insert downwards and seals off the outside of the lower section were normal filtration takes place.  Simultaneously this opens the upper section where water passes through previously inaccessible filter, as water then enters the lower chamber it is pushed back through the lower filter from inside outwards i.e. the filter is reverse rinsed with filtered water.

The F76 range also has Double Spin Technology where turbine blades circulate the water, which in turn rotates a rotor in the upper filter.  This rinses off any particles that have adhered to the upper filter during cleaning.

Braukmann – Resideo F76S key features:

• Double Spin Technology for connection sizes 1/2″ to 2″
  – Cartridge with external rotor enabling simultaneous
  cleaning in lower and upper filter areas
  – Visual function check possible
• Filtered water supplied even during reverse rinsing
• Patented reverse rinsing system – fast and thorough cleaning of the filter with small amount of water
• Memory ring indicates when next manual reverse rinsing is due
• Automatic reverse rinsing actuator with bayonet connector can be retrofitted
• Large filter surface
• Shock resistant clear synthetic material filter bowl enables easy checking of filter contamination
• Filter and complete filter bowl are replaceable
• Also available without connections
• Standardised discharge connection
• ACS certified
• All materials are KTW approved
• Approved by TÜV LGA for low noise, Group 1 without limitations

Braukmann Actuator & Pressure Switch

The F76S can be fitted with the RR11S-AGB actuator and the DDS76 differential pressure switch to further enhance this world class backwash filter, enabling the reverse filter to become fully automated to reduce onsite maintenance.
